DTE I-Sensor

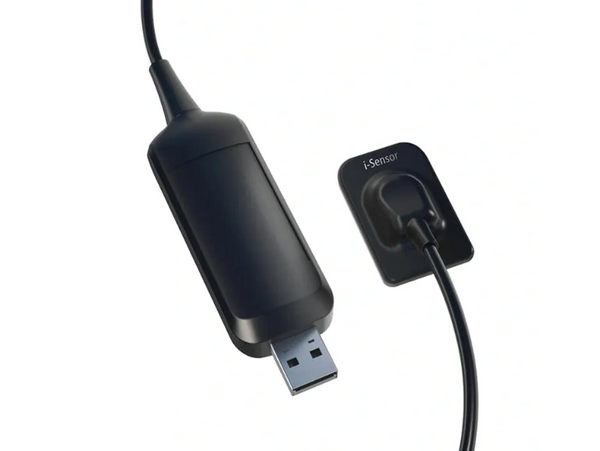

 Woodpecker I-Sensor

- I Sensor RVG Serves as A Highly Effective Aid Throughout the Diagnosis, Treatment, And Treatment Planning Process. Easy-To-Use Software, With Workflow Efficiency Improvements. - As A Powerful, Centralized Imaging Hub For All Patient Images.

Brand : Woodpecker

Model : I-Sensor

Send request

Configuration

Technical parameters

Technical parameters

- High-Resolution Imaging
- 25lp/Mm Theoretical Resolution
- C Mos Technology
- Thinnest Sensor 4.4mm
- Durable And Reliable: 80000+ Bending Test & IP68 Protection Rating
- Smart And Powerful Software
- Curved Edges To Avoid Patient Injury
- Highly Flexible Cable
- It Has A Twain Option. And The Server Function.
- Now There Is No Limit For Computers Connected To The Software License.
- I Sensor RVG Serves As A Highly Effective Aid Throughout The Diagnosis, Treatment, And Treatment Planning Process.
- Easy-To-Use Software, With Workflow Efficiency Improvements

Technical parameters

Technical parameters

Technical parameters

  •   Mechanical Size 38.5 x 25 x 4.4 mm or 40 x 31 x 4.4 mm
  • Detector Technology APS CMOS
  • Pixel Matrix Size 1000 x 1500 or 1300 x 1800
  • Theoretical Resolution 25 lp/mm
  • Effective Area 20 x 30 mm or 26 x 36 mm
  • Cable Length 9 ft
  • Data Interface USB 2.0
  • Weight 118 g or 158 g
  • Water Protection IP68
